Hot Rod Bio: A 1997 K1500 Built as an Everyday Hot Rod

Not every hot rod starts life in a garage. Some start parked next to a barn.

This 1997 K1500 Chevy pickup spent most of its life as a farm truck, barely moving more than a few feet at a time. No rust, plenty of dents, scratches, and grime, but solid where it mattered. After years of sitting, a failed fuel pump turned into an unexpected opportunity, and the truck finally got a second life.

From Farm Truck to Driver

The original plan was simple. Replace the tired 4.3 V6 with a mild LS, make it more enjoyable to drive, and keep it honest. That plan escalated quickly.

An LS2 originally built for another project ended up under the hood, backed by a 4L80E for strength and reliability. From there, the focus shifted to building a drivetrain that could handle power while still being driven daily.

All Wheel Drive With Intent

Rather than keeping a traditional part time four wheel drive setup, the K1500 was converted to all wheel drive using a viscous coupling transfer case. Power is biased rearward while still feeding the front axle when traction demands it, eliminating driveline bind and improving road manners.

Matching gears front and rear, upgraded differentials, and suspension tweaks make this truck confident on pavement, gravel roads, and everything in between.

OE Plus Philosophy

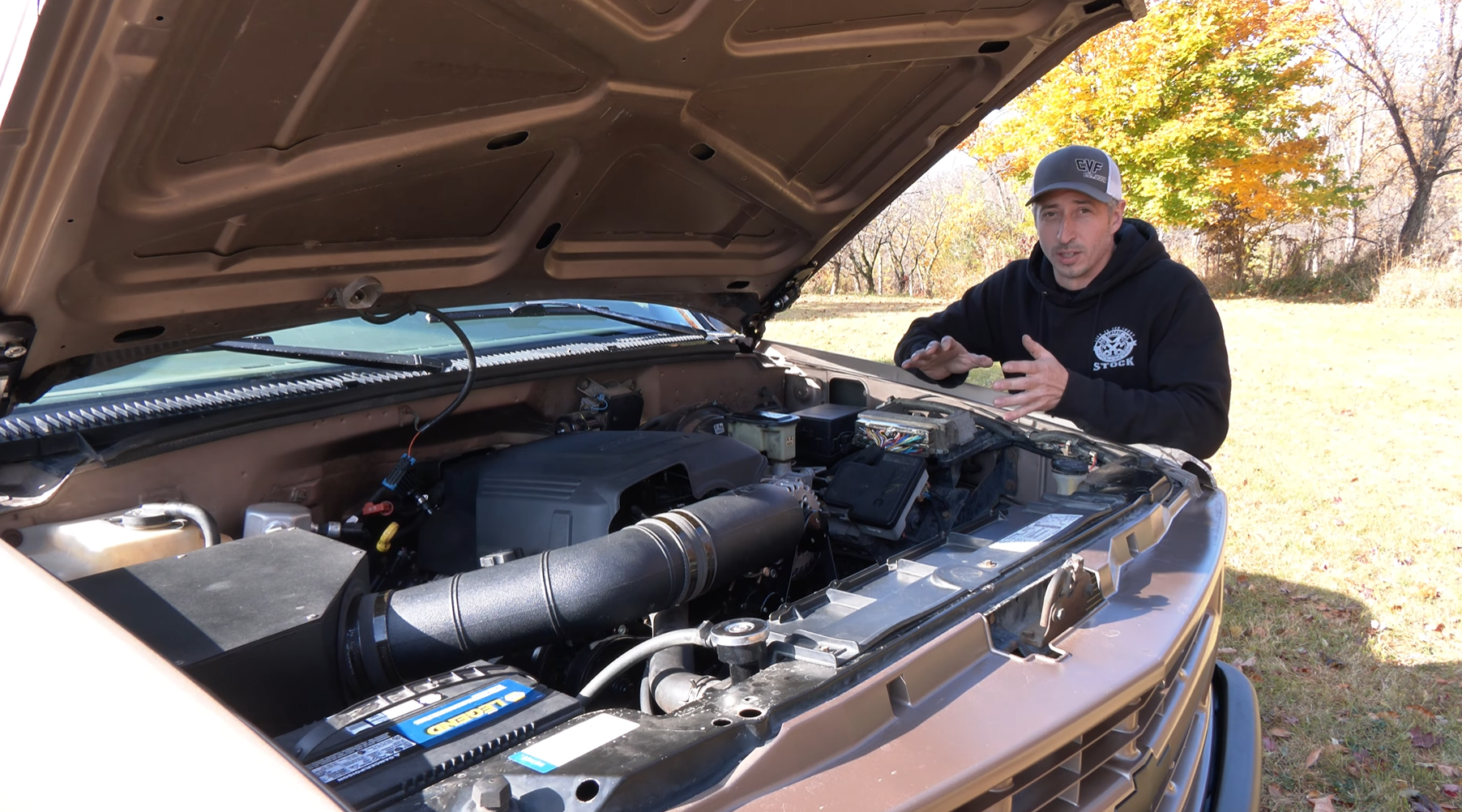

Under the hood, the goal was factory plus. CVF factory location brackets retain stock style accessory placement while upgrading strength and fit. The engine bay stays clean, functional, and deceptively stock looking, exactly how an everyday hot rod should be.

Scratches, dents, and wear were left untouched on purpose. This truck is meant to be driven, not babied.

Built to Be Used

This K1500 was never meant to be a show truck. It was built to haul, cruise back roads, hit gravel, and rack up miles without guilt. The suspension remains mostly stock in layout, with targeted upgrades to control axle wrap and wheel hop once power came into the picture. CalTracs in the rear keep everything planted, while subtle ride height changes level the truck without sacrificing suspension travel.

Big tires fill the wheel wells, not for looks, but to keep the truck usable anywhere it goes. Despite appearances, the truck is not lifted. It simply wears as much tire as possible without rubbing, maintaining full articulation and ride quality.

Keeping the Interior Honest

Inside, the truck stays true to its roots. Factory gauges, factory radio, factory switches, all still doing their job. No aftermarket dash, no digital displays, no distractions. The goal was for the truck to feel exactly like a 1997 K1500 from the driver’s seat, just with significantly more power under the hood.

Rubber floors, worn trim, and small imperfections were left alone on purpose. This is a truck you throw gear into, not one you stress over.

Cooling, Air, and Daily Comfort

Air conditioning was non negotiable. The factory style setup was retained using smart component choices and careful routing, keeping everything clean and serviceable. A sealed airbox pulls true cold air from outside the engine bay, keeping intake temps consistent even at idle.

Every decision leaned toward reliability. Nothing exotic, nothing unnecessary.

Power You Don’t Expect

With roughly five hundred horsepower at the crank, the truck moves far quicker than it looks. All wheel drive transforms how the power hits the ground, pulling the truck forward instead of lighting the tires instantly. It is fast enough to surprise, controlled enough to feel confident, and calm enough to drive every day.

This is not a burnout machine built for attention. It is a sleeper built for real roads.

Future Plans

The truck is far from done. A supercharger is already planned as part of ongoing CVF development, pushing the platform even further without compromising the truck’s everyday usability. Chassis stiffening may follow as power levels climb, but only if it makes sense for how the truck is actually used.
