Ford Coyote 5.0
ALL INCLUSIVE SERPENTINE SYSTEMS FOR FORD 5.0L COYOTE V8
Bring hydraulic power steering to your Coyote-powered Mustang, truck or custom build with a CVF Racing Ford Coyote 5.0 Wraptor serpentine system. Choose a configuration with a GM Type II power steering pump, along with the alternator and air conditioning options your vehicle needs.

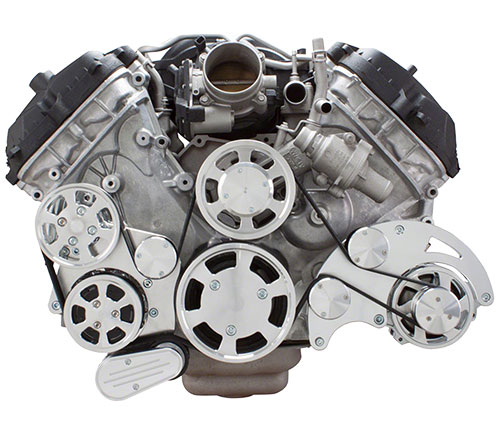

Available in Standard and Compact layouts, these all-inclusive accessory drive systems combine billet aluminum brackets, an 8-rib belt drive and coordinated accessories. The Compact version uses a flipped alternator arrangement, giving you another layout to consider when planning your swap.
Choose by your installed components: Timing cover, balancer and water pump compatibility vary by application. Review the selected kit's requirements before ordering.
Build Your Coyote Accessory Drive Around Your Swap
Add Hydraulic Power Steering
Keeping hydraulic steering in your project? Select a Wraptor configuration with power steering to add the pump and matching drive components to your Coyote engine. The Standard system uses a GM Type II pump with a remote reservoir, allowing the reservoir to be positioned separately from the pump.
Choose power steering and alternator for a build without AC, or add air conditioning for a complete three-accessory arrangement. AC-and-alternator and alternator-only configurations are also available.
Standard or Compact?
Standard Wraptor: Accepts compatible car and truck timing covers. Compare its accessory positions with your chassis, steering equipment and available engine bay space.

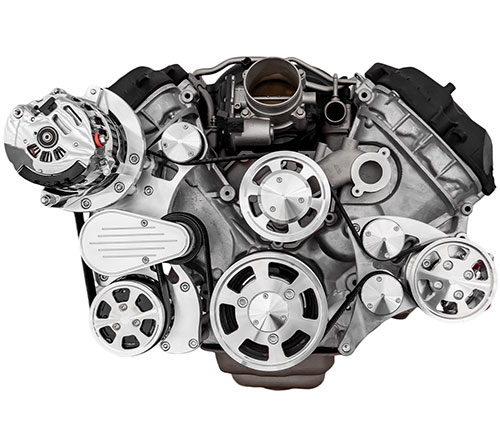

Compact Wraptor: Uses a flipped alternator arrangement and requires a compatible car timing cover. It does not work with the truck timing cover. Check the complete layout against your build before choosing this version.
A Coordinated Front Drive Package
Wraptor systems include the brackets, drive pulleys, belt and mounting hardware, with engine accessories determined by your selected configuration. Available packages include a 160-amp 1-wire CS130 alternator, GM Type II power steering pump and 7B10 Peanut Style AC compressor.
The water pump pulley is part of the drive package, but the water pump itself is not included. Review each product's contents, finish options and accessory upgrades for your order.
Check the Balancer Before You Order
These systems require the specified 2017-or-earlier-style balancer. A later Coyote engine may need a balancer change to meet the kit's requirements. Engine model year alone does not establish compatibility; confirm your installed balancer and timing cover together.
Coyote Swap Accessory Drive Questions
Can I add power steering without adding air conditioning?
Yes. Select the power steering and alternator configuration if your vehicle needs hydraulic steering but does not need an AC compressor.
Can I use the Compact kit on a truck Coyote engine?
The Compact kit requires a compatible car timing cover, so it cannot be installed with the truck timing cover retained. Check the engine's actual front-cover arrangement and all other application requirements. The Standard kit accepts compatible truck and car timing covers.
Does all-inclusive mean the water pump is supplied?
No. Coyote Wraptor systems include a water pump pulley, but the water pump is not included. Confirm the pump and pulley mounting requirements for the exact kit you select.
Will every 2011-and-newer Coyote work without changes?
No. These kits serve specific Coyote 5.0 applications and have timing cover, balancer and water pump requirements. Later engine generations still need the specified front-engine components, and Compact and Standard layouts have different timing-cover requirements.
Can I retain my existing alternator or AC compressor?
Check the required accessory styles before planning to reuse them. The listed requirements specify a GM CS130-style alternator and a 7B10 Peanut Style compressor with an 8-rib clutch. Contact CVF before ordering a system without accessories.
Planning your Coyote swap? Call 651-356-8593 or email support@cvfracing.com with your engine, timing cover, balancer and vehicle details.
