Pontiac Serpentine Conversion - AC, Power Steering & Alternator - Electric Water Pump

Pontiac Serpentine Conversion Kit (350-400, 428 & 455)
Electric Water Pump Applications

Complete 8 Rib Serpentine system for the Pontiac engines with alternator, power steering and Air Conditioning.

Kit Includes:

• 1 Belt Water Pump Pulley
• 1 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Keyway Power Steering Pulley
• 3 Idler Pulleys
• Power Steering / Alternator Bracket
• Sanden AC Compressor Bracket
• ALTFAN - Universal alternator fan

Notes:

• Requires 4 bolt pattern on Harmonic Balancer

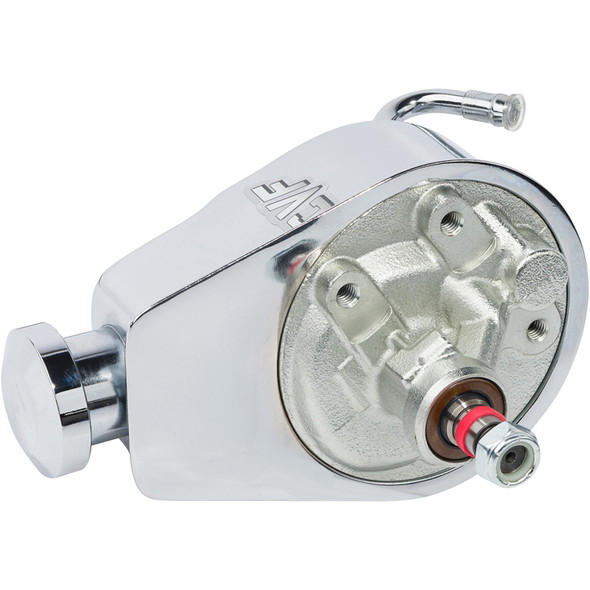

• Saginaw Keyway Compressor and Power Steering Pump NOT Included.
• Both GM and Pontiac Reservoir Orientation will Work.
• Requires Saginaw Power Steering Pump with mounting stud in lower right corner on the back of the pump.

Pontiac V8 Engines (350 - 400, 428 & 455)

• 1969+ Pontiac Passenger Cars

Generally fits the following models with original 350, 400, 428 & 455 engines installed. Note: 1969 was a transition year and you need to ensure that you have the taller 4.5" water pump.

• 1969 - 1974 Pontiac GTO
• 1969 - 1977 Pontiac Grand Prix
• 1969 - 1981 Pontiac LeMans
• 1969 - 1976 Pontiac Bonneville
• 1969 - 1976 Pontiac Firebird
• 1969 - 1976 Pontiac Transam
• 1969 - 1981 Pontiac Catalina
• 1978 - 1980 Pontiac Grand Am
• 1969 - 1972 Pontiac Tempest
• 1969 - 1977 Pontiac Ventura

This is not a complete list. If you have a question about application, please e-mail us. It is not recommended that you select pulleys solely based on model and year alone because often the original engine has been swapped.
