Stealth Black Chevy LS Serpentine Conversion

AC - PS - ALT Applications

LS1, LS2, LS3 & LS6

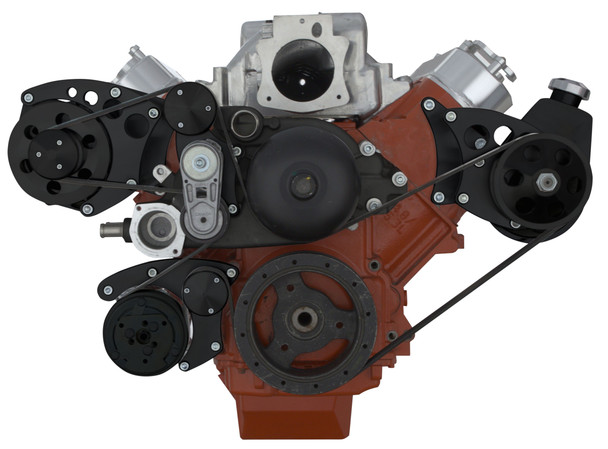

The BEAST™ 6 Track Serpentine System for Chevy LS Engines with AC, Power Steering, and Alternator. Save money by reusing your OEM water pump and balancer. Mounts Alternator and Power Steering pump in mid-mount configuration. AC is mounted on lower passenger side (USA). All brackets and pulley are bright dip black anodized for a long lasting finish.

Kit Includes:

• Passenger Side Alternator Bracket
• Lower Passenger Side AC Bracket
• Gates Spring Loaded Tensioner
• Driver's Side Power Steering Bracket
• 6 Rib Power Steering Pulley with 5/8" Keyway Shaft
• 6 Rib Billet Alternator Pulley
• Billet Alternator Fan
• Billet Idlers w/ Cap

Optional Upgrades:

• GM CS-130 140A 1 Wire Alternator
• 6 Rib Peanut Style Compressor
• GM Saginaw Power Steering Pump
• GM Type II Power Steering Pump w/ Remote Reservoir
• GM Type II Power Steering Pump w/ Attached Plastic Reservoir
• Hydroboost Power Steering Pump (Only available in Chrome)
• Gates Premium 6 Rib Belt (s)
• Air Fitting Adapter for Peanut Style Compressor

Notes:

• Corvette/CTS-V/SS/G8 Balancer Pulley selection requires LS1 Corvette Water Pump (GM# 19256263)
• '98-02 Camaro/Firebird/GTO Balancer Pulley selection requires LS1 Camaro or LS1/LS2 GTO Water Pump (GM# 19256263)
• Truck/SUV/'10-15 Camaro Balancer Pulley selection requires Gen3 Truck Water Pump (GM# 19195104)

To ensure you get the proper kit, please select the spacing option based on your current balancer. If you are unsure of which balancer you have, please contact our tech staff at 651-356-8593 or support@cvfracing.com.
