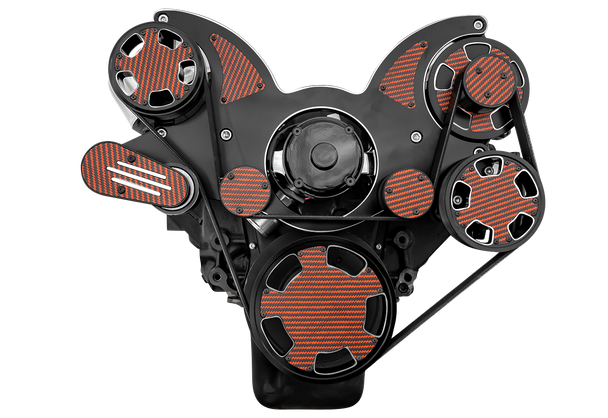

Big Block Chevy All Inclusive Wraptor Serpentine System for EWP - Carbon Fiber - Black Diamond

Black Diamond Carbon Fiber Big Block Chevy 396, 427 and 454 Serpentine Conversion Kit

All Inclusive WRAPTOR™ 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Exclusive Carbon Fiber Wraptor Includes Authentic Carbon Fiber cut outs on main bracket and pulleys available in 5 different unique colors.

ALL INCLUSIVE KIT INCLUDES:

• 140 Amp Black Plated 1-Wire CS130 Alternator*
• 35 GMP Electric Water Pump*
• Black Plated AC Compressor
• AC Compressor Clutch Cover
• Black Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Gates Premium 8 Rib Belt*
• Crank Pulley*
• Crank Pulley Spacer*
• Alternator Pulley & Cover*
• Power Steering Pulley
• One Piece Billet Aluminum*
• Universal Alternator Fan*
• Idler Pulley (s) with Cover*
• Spring Loaded Tensioner*

APPLICATION NOTES:

• Works with either Mechanical or Electric fuel Pump
• Requires Electric Fan
• Works with either Standard or Tall Deck Engines
• Power Steering Lines from pump to reservoir not included
• Compatible with Hydroboost

IF ORDERING WITHOUT ACCESSORIES, PLEASE SEE THE REQUIREMENTS BELOW:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.
