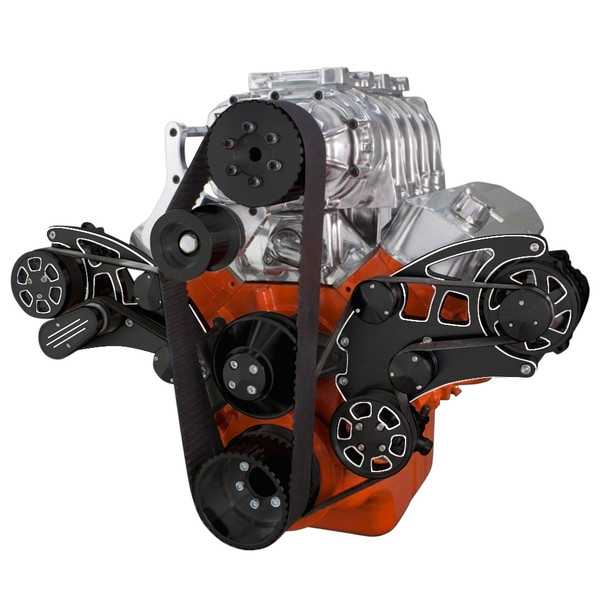

Big Block Chevy All Inclusive Wraptor Serpentine System for Weiand Roots Style Blower - Black Diamond

Black Diamond Big Block Chevy 396, 427 and 454 Supercharger Serpentine Conversion Kit
Root Style Blower

All Inclusive WRAPTOR^TM 8 Track Supercharger Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:

• High Flow Aluminum Water Pump*
• 140 Amp Black Powder Coated 1-Wire CS130 Alternator*
• Black Powder Coated AC Compressor
• AC Compressor Clutch Cover
• Chrome Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Gates Premium 8 Rib Belt*
• Water Pump Pulley & Cover*
• Crank Pulley*
• Alternator Pulley & Cover*
• Power Steering Pulley
• Two Piece Billet Aluminum Bracket*
• Universal Alternator Fan*

**Included with all configurations

Application Notes:

• Works with either Mechanical or Electric fuel Pump
• Works with either Mechanical or Electric fan
• Works with Standard Deck and Tall Deck Engines
• Power Steering Lines from pump to reservoir not included
• Kits are built for 2.25" pilot register on crank pulley, please give us a call before order if you have a 2" pilot

If ordering without accessories, please see the requirements below:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
• Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Passenger Side

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.
