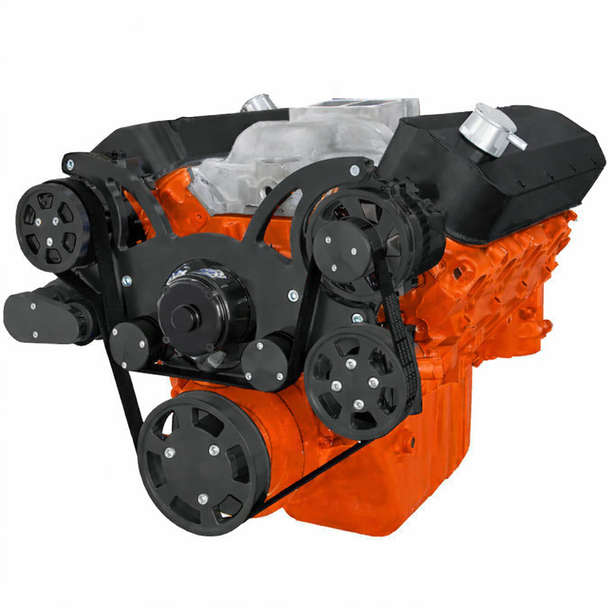

Big Block Chevy All Inclusive Wraptor Serpentine System w/ Electric Water Pump - Stealth Black

Black Big Block Chevy 396, 427 and 454 Serpentine Conversion Kit

All Inclusive WRAPTOR^TM 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:

• 140 Amp Black Powder Coated 1-Wire CS130 Alternator*
• 35 GMP Electric Water Pump*
• Black Powder Coated AC Compressor
• AC Compressor Clutch Cover
• Chrome Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Gates Premium 8 Rib Belt*
• Crank Pulley*
• Crank Pulley Spacer (NOT Anodized)*
• Alternator Pulley & Cover*
• Power Steering Pulley
• One Piece Billet Aluminum Bracket*
• Universal Alternator Fan*
• All Mounting Hardware*

**Included with all configurations

Application Notes:

• Works with either Mechanical or Electric fuel Pump
• Requires Electric Fan
• Works with either Standard or Tall Deck Engines
• Power Steering Lines from pump to reservoir not included (Sold Separately)
• Compatible with Hydro-boost
• Compatible with Big Block 396 - 402 - 427 - 454 - 502 - 572 - 632 Engines

If ordering without accessories, please see the requirements below:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S
