Big Block Chrysler All Inclusive Wraptor Serpentine System - Carbon Fiber - Polished Finishes

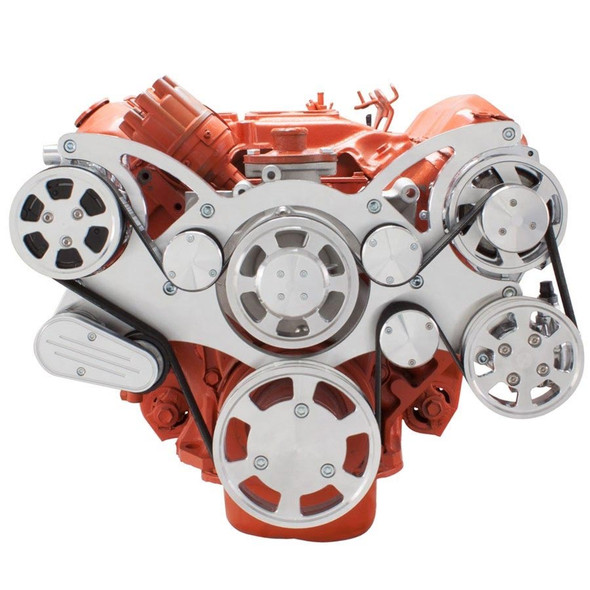

Big Block Chrysler 383, 400, 426 and 440 Serpentine Conversion Kit

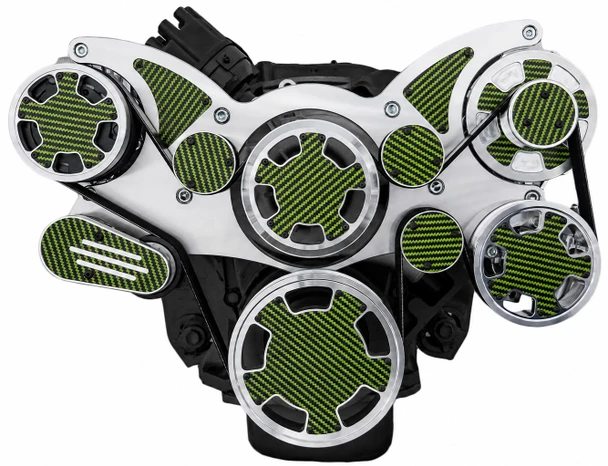

All Inclusive WRAPTOR™ 8 Track Serpentine System for Chrysler Big Block engines with 100% Authentic Carbon Fiber Inlay. This kit comes with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

ALL INCLUSIVE KIT INCLUDES:

• High Flow Aluminum Water Pump*
• Water Pump Housing*
• 140 Amp Chrome 1-Wire CS130 Alternator*
• Chrome Plated AC Compressor
• AC Compressor Clutch Cover
• Chrome Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Gates Premium 8 Rib Belt*
• Water Pump Pulley & Cover*
• Crank Pulley*
• Crank Pulley Spacer*
• Alternator Pulley & Cover*
• Power Steering Pulley
• One Piece Billet Aluminum Bracket*
• Universal Alternator Fan*
• Spring Loaded Tensioner w/ Cover*
• Idler Pulley (s) w/ Cover*

**Included with all configurations

APPLICATION NOTES:

• Works with either Mechanical or Electric fuel Pump
• Works with either Mechanical or Electric fan (Highly Recommended)
• Power Steering Lines from pump to reservoir not included
• Hydroboost upgrade available

IF ORDERING WITHOUT ACCESSORIES, PLEASE SEE THE REQUIREMENTS BELOW:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
• Water Pump - 5.7" Tall, Clockwise Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S
