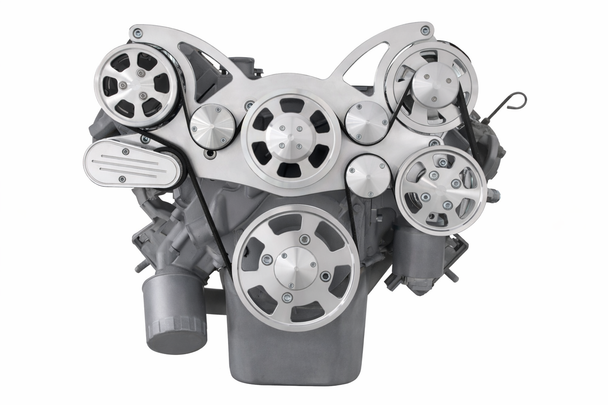

All Inclusive Serpentine System for Cadillac V8 Engines

368 - 425 - 472 - 500

All Inclusive WRAPTOR™ 8 Track Serpentine System for Cadillac engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

ALL INCLUSIVE KIT INCLUDES:

• Chrome Plated AC Compressor

• AC Compressor Cap

• Chrome Plated GM Type II Power Steering Pump, Saginaw, or KRC Pump rated for Hydroboost

• Remote Mount Power Steering Reservoir

• Gates Premium 8 Rib Belt**

• Water Pump Pulley and Cap**

• Crank Pulley**

• Crank Pulley Adapter**

• Alternator Pulley and Cap**

• Power Steering Pulley

• One Piece Bracket**

• Universal Alternator Fan**

• Chrome Plated CS130 Alternator (140 AMP)**

**Included with all configurations

APPLICATION NOTES:

• Works with either Mechanical or Electrical Fuel Pump

• Works with either Mechanical or Electrical Fan

• Power Steering Lines from Pump to reservoir NOT included

• Hydroboost upgrade available

IF ORDERING WITHOUT ACCESSORIES, PLEASE CALL 651.356.8593 BEFORE ORDERING AND SEE THE REQUIREMENTS BELOW:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing

• Power Steering Pump - GM Type II Pump

• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch

• Power Steering Pulley
