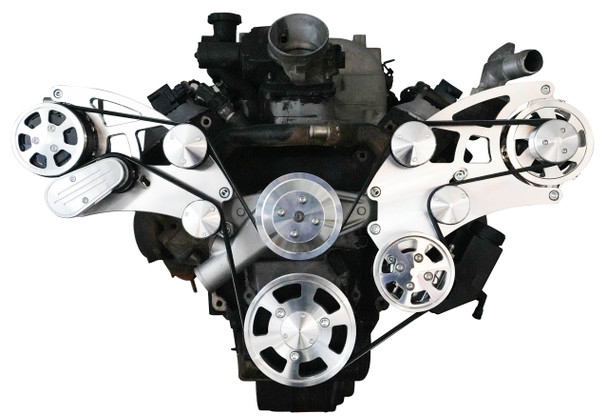

Chevy L18 Wide Mount Wraptor Kit

8.1L - Vortec 8100

All Inclusive Wraptor™ 8 Track Wide Mount Serpentine System for Chevy L18 engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

ALL INCLUSIVE KIT INCLUDES:

• High Flow Aluminum Water Pump*
• 140 Amp Chrome 1-Wire CS130 Alternator*
• Chrome AC Compressor
• AC Compressor Clutch Cover
• Chrome Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Gates Premium 8 Rib Belt*
• Water Pump Pulley & Cover*
• Crank Pulley*
• Alternator Pulley & Cover*
• Power Steering Pulley
• Two Piece Billet Aluminum Bracket*
• Universal Alternator Fan*

**Included with all configurations

APPLICATION NOTES:

• Power Steering Lines from pump to reservoir not included
• Compatible 2001-2007 L18 Engines
• Requires 6.25" Performance Quotient Balancer Part No. 2542701
• Requires coolant crossover tube from a 2500 or 3500 Silverado/Avalanche/Suburban
• Utilizes Big Block Chevy Short Water Pump

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.
