Chevrolet

Chevy LS All Inclusive Mid-Mount Wraptor Serpentine Kit - Polished

SKU:
LSXM-WRAPTOR
Availability:
In Stock
  • Chevy LS Engine Serpentine Kit - AC, Alternator & Power Steering - Mid-Mount
  • Chevy LS Engine Serpentine Kit - AC, Alternator & Power Steering - Mid-Mount
  • Chevy LS Engine Serpentine Kit - AC, Alternator & Power Steering - Mid-Mount
  • Chevy LS All Inclusive Mid-Mount Wraptor Serpentine Kit - Polished
  • Chevy LS All Inclusive Mid-Mount Wraptor Serpentine Kit - Polished
  • Chevy LS All Inclusive Mid-Mount Wraptor Serpentine Kit - Polished
MSRP: $2,195.00
$1,995.00
— You save $200.00

Description

Chevy LS Engine Mid Mount Serpentine Kit

Fits LS1, LS2, LS3, LS6 & LS7 Engines
All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!

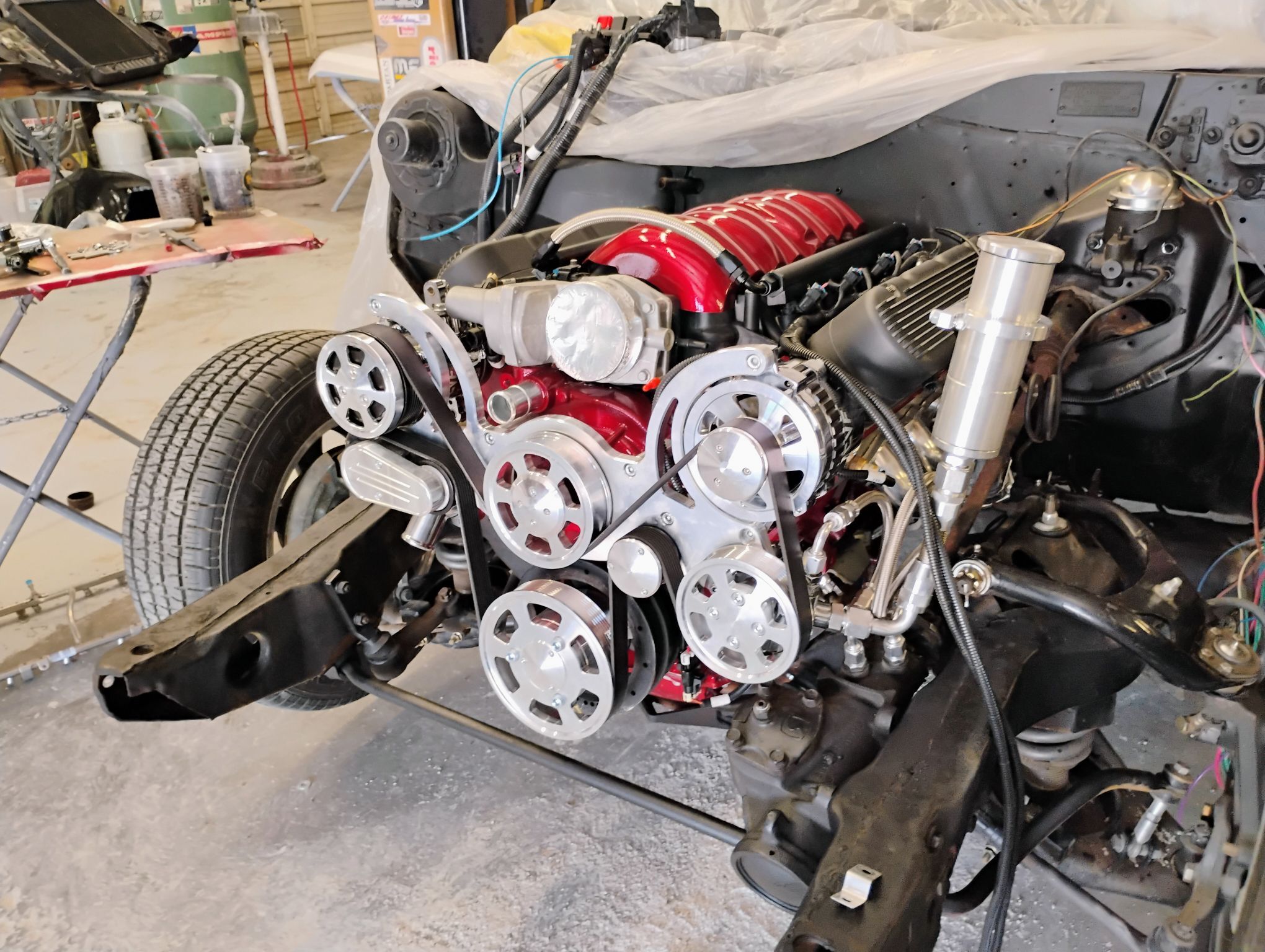

All Inclusive WRAPTORTM 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Kit Includes:
  • High Flow Aluminum LS1 Water Pump*
  • GM Type II Power Steering Pump
  • 140 Amp, 1-Wire CS130 Alternator*
  • Sanden Style Peanut Compressor with 8 Rib Clutch
  • Polished AC Compressor Fitting
  • Polished Remote Mount Reservoir with Mounting Bracket
  • Gates Premium 8 Rib Belt*
  • 8 Rib Water Pump Pulley*
  • 8 Rib Crank Pulley*
  • 8 Rib Alternator Pulley*
  • 8 Rib Power Steering Pulley
  • Spring Loaded Idler Pulley*
  • One Piece Billet Aluminum Bracket*
  • Hub Adapter for attaching crank pulley to OEM Balancer, SFI, ATI, or aftermarket Powerbond balancer*
  • Billet Compressor Clutch Cover
  • Billet alternator fan*
  • All Mounting Hardware*

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance



Application Notes
  • Power Steering Lines from pump to reservoir not included
  • Compatible with Hydroboost
  • Some drive by wire applications may require Holley part# 717-15
  • Not compatible with 102MM or MSD Atomic 2701 Intake

Notes: Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer; Decorative Design on Water Pump Pulley not available with VVT Applications.


CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S



warning8p.pngWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

View AllClose

Additional Information

Product Type:
Wraptor - All Inclusive
Power Steering Included:
Yes
AC Included:
Yes
Mounting Position:
Mid-Mount
Finish:
Polished or C3 Clear Coat
Belt Type:
Serpentine 8 Rib
Water Pump Type:
Mechanical
Water Pump:
LS1
Water Pump Rotation:
Reverse
Make:
Chevy
Engine:
LS
