Chevy LS All Inclusive Mid-Mount Wraptor Serpentine System w/ Carbon Fiber - Stealth Black

SKU:
CF-B-LSXM-WRAPTOR

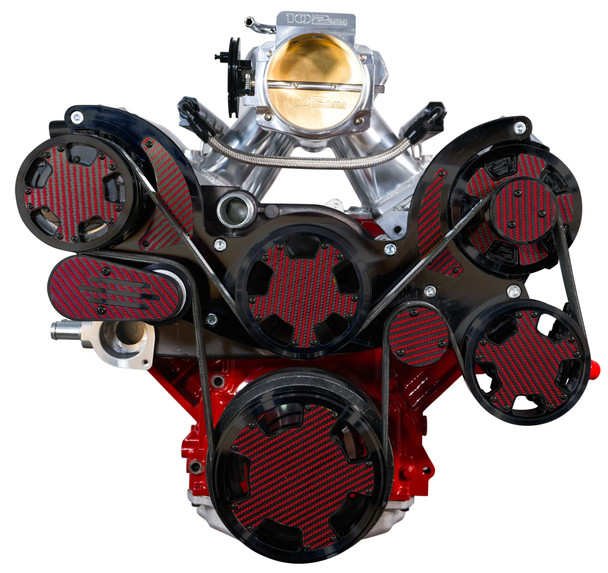

  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Red, Front, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Red, Right, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Red, Left, AC
  • Chevy LS All Inclusive Mid-Mount Wraptor Serpentine System w/ Carbon Fiber - Stealth Black
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Green, Front, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Green, Right, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Black Carbon, Front, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Black Carbon, Right, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Blue, Front, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Blue, Right, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Orange, Front, AC
  • Black Chevy LS Mid-Mount Wraptor Serpentine System, Carbon Fiber, Orange, Right, AC
  • Chevy LS Mid-Mount Wraptor Serpentine System, Dimensions
MSRP: $2,580.00
$2,480.00
— You save $100.00
Frequently bought together:

Description

Black Chevy LS Engine Mid Mount Serpentine Kit

Fits LS1, LS2, LS3, LS6 & LS7 Engines | Carbon Fiber Inlays | All Inclusive!

All Inclusive WRAPTORTM 8 Track Front Drive System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

KIT INCLUDES:

  • High Flow Aluminum Water Pump*
  • GM Type II Power Steering Pump
  • 140 Amp, 1-Wire CS130 Alternator with side mount post
  • Sanden Style Peanut Compressor with 8 Rib Clutch
  • Polished Remote Mount Reservoir with Mounting Bracket
  • Premium 8 Rib Belt*
  • 8 Rib Water Pump Pulley*
  • 8 Rib Crank Pulley*
  • 8 Rib Alternator Pulley*
  • 8 Rib Power Steering Pulley
  • Spring Loaded Belt Tensioner*
  • Single Bracket*
  • Hub Adapter for attaching crank pulley to OEM (not included), SFI (Included), or ATI Balancers (not included; Part# 918854, 917303 or 917219)
  • Billet Compressor Clutch Cover
  • Billet alternator fan*
  • All Mounting Hardware*
  • Authentic Carbon Fiber Inlays*

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

APPLICATION NOTES:

  • Power Steering Lines from pump to reservoir not included
  • Compatible with Hydroboost
  • Call for pricing for kits with out engine accessories
  • Some drive by wire applications may require Holley part# 717-15
  • Not compatible with 102MM or MSD Atomic 2701 Intake
  • Decorative Water Pump Pulley Not Available for VVT Applications (Bowl Style Included), No Carbon Fiber

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S


warning8p.pngWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Customer Images

View AllClose

Videos

View AllClose

Additional Information

Product Type:
Wraptor - All Inclusive
Power Steering Included:
Yes
AC Included:
Yes
Mounting Position:
Mid-Mount
Finish:
Stealth Black w/ Carbon Fiber
Belt Type:
Serpentine 8 Rib
Water Pump Type:
Mechanical
Water Pump:
LS1
Water Pump Rotation:
Reverse
Make:
Chevy
Engine:
LS
