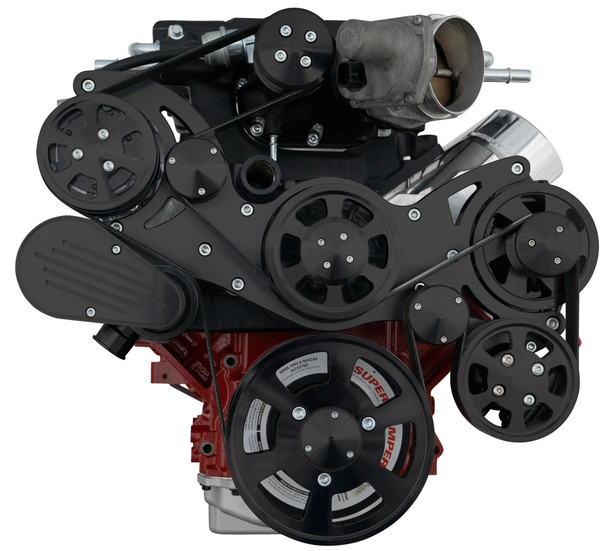

Chevy LS All Inclusive Wraptor Serpentine System for Edelbrock Superchargers - Stealth Black

Chevy LS Serpentine Kit
Edelbrock Supercharger

All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!

The WRAPTOR^TM 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Kit Includes:

• High Flow Aluminum Water Pump*
• GM Type II Power Steering Pump
• Sanden Style AC Peanut Compressor
• 140 Amp, 1-Wire CS130 Alternator*
• Remote Mount Reservoir with Mounting Bracket
• Gates Premium 8 Rib Belt*
• 8 Rib Water Pump Pulley*
• 8 Rib Crank Pulley*
• 8 Rib Alternator Pulley*
• 8 Rib Power Steering Pulley
• Gates Spring Loaded Idler Pulley*
• Single Piece Bracket*
• Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)*
• Billet alternator fan*
• Blower Snout Hub Adapter*
• Blower Pulley with Cap*

**Included with all configurations

Application Notes:

• Fits LS Based Engines with Camaro spacing for Edelbrock Supercharger
• Compatible with 15420, 15450 and 15470 Superchargers
• Power Steering Lines from pump to reservoir not included
• Standard 3" pulley provides 8.6 PSI boost
• Some drive by wire applications may require Holley part# 717-15
• Optional Blower (Tuner) Pulley Kit is available: Part No. B-LSASCKIT
• Requires 90º Thermostat Housing

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S
