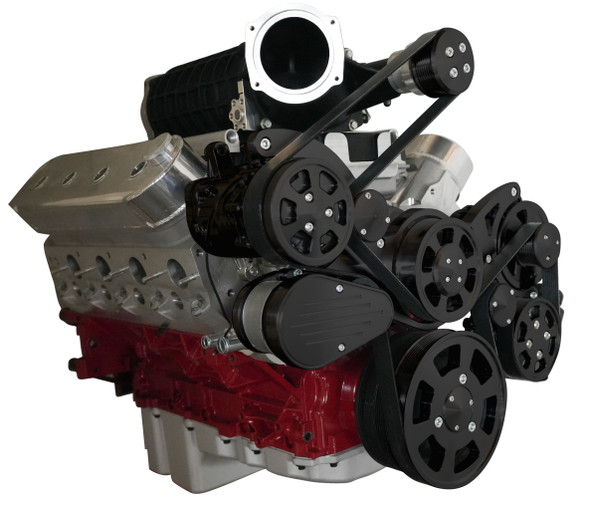

Chevy LS All Inclusive Wraptor Serpentine System for The Blower Shop Supercharger - Stealth Black

Chevy LSX Supercharger Serpentine Conversion Kit
Root Style Blower

All Inclusive WRAPTOR™ 8 Track Supercharger Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

ALL INCLUSIVE KIT INCLUDES:

• (Black) High Flow Aluminum Water Pump*
• 140 Amp Black 1-Wire CS130 Alternator*
• Black AC Compressor
• Billet Compressor Clutch Cover
• Black Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Gates Premium 8 Rib Belt*
• Water Pump Pulley & Cover*
• Crank Pulley*
• Alternator Pulley & Cover*
• Power Steering Pulley
• Universal Alternator Fan*
• One Piece Bracket*
• All Mounting Hardware*

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

APPLICATION NOTES:

• Works with either Mechanical or Electric fan
• Power Steering Lines from pump to reservoir not included
• Not compatible with 102MM or MSD Atomic 2701 intake
• Requires SFI or ATI aftermarket balancers
• Supercharger NOT Included

IF ORDERING WITHOUT ACCESSORIES, PLEASE SEE THE REQUIREMENTS BELOW:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S
