Chevy LSX Supercharger Serpentine Conversion Kit
Root Style Blower | The Blower Shop® | Weiand® | 8 Rib Serpentine

All Inclusive Accessory Drive Kit for Chevy LS! Includes Hub Adapter, Belts, Remote Reservoir and More!

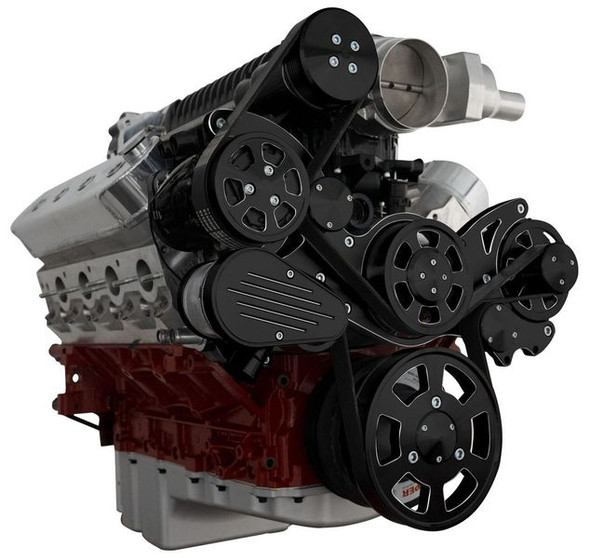

All Inclusive WRAPTOR^TM 8 Track Front Drive System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

ALL INCLUSIVE KIT INCLUDES:

• (Black) High Flow Aluminum Water Pump*
• 140 Amp Black 1-Wire CS130 Alternator*
• Black AC Compressor
• AC Compressor Clutch Cover
• Black Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket
• Premium 8 Rib Belt*
• Water Pump Pulley & Cover*
• Crank Pulley*
• Alternator Pulley & Cover*
• Power Steering Pulley
• Universal Alternator Fan*
• One Piece Bracket*
• All Mounting Hardware*

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

APPLICATION NOTES:

• Works with either Mechanical or Electric fan
• Power Steering Lines from pump to reservoir not included
• Not compatible with 102MM or MSD Atomic 2701 intake
• Requires SFI or ATI aftermarket balancers
• Supercharger NOT Included
• Weiand Applications May Require Modification of Blower Idler Location

IF ORDERING WITHOUT ACCESSORIES, PLEASE SEE THE REQUIREMENTS BELOW:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S
