Chevy LS Engine All Inclusive Mid Mount Wraptor Serpentine Kit with Electric Water Pump - Polished Finishes

Chevy LS Engine Mid Mount Serpentine Kit

Fits LS1, LS2, LS3, LS6 & LS7 Engines
All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!

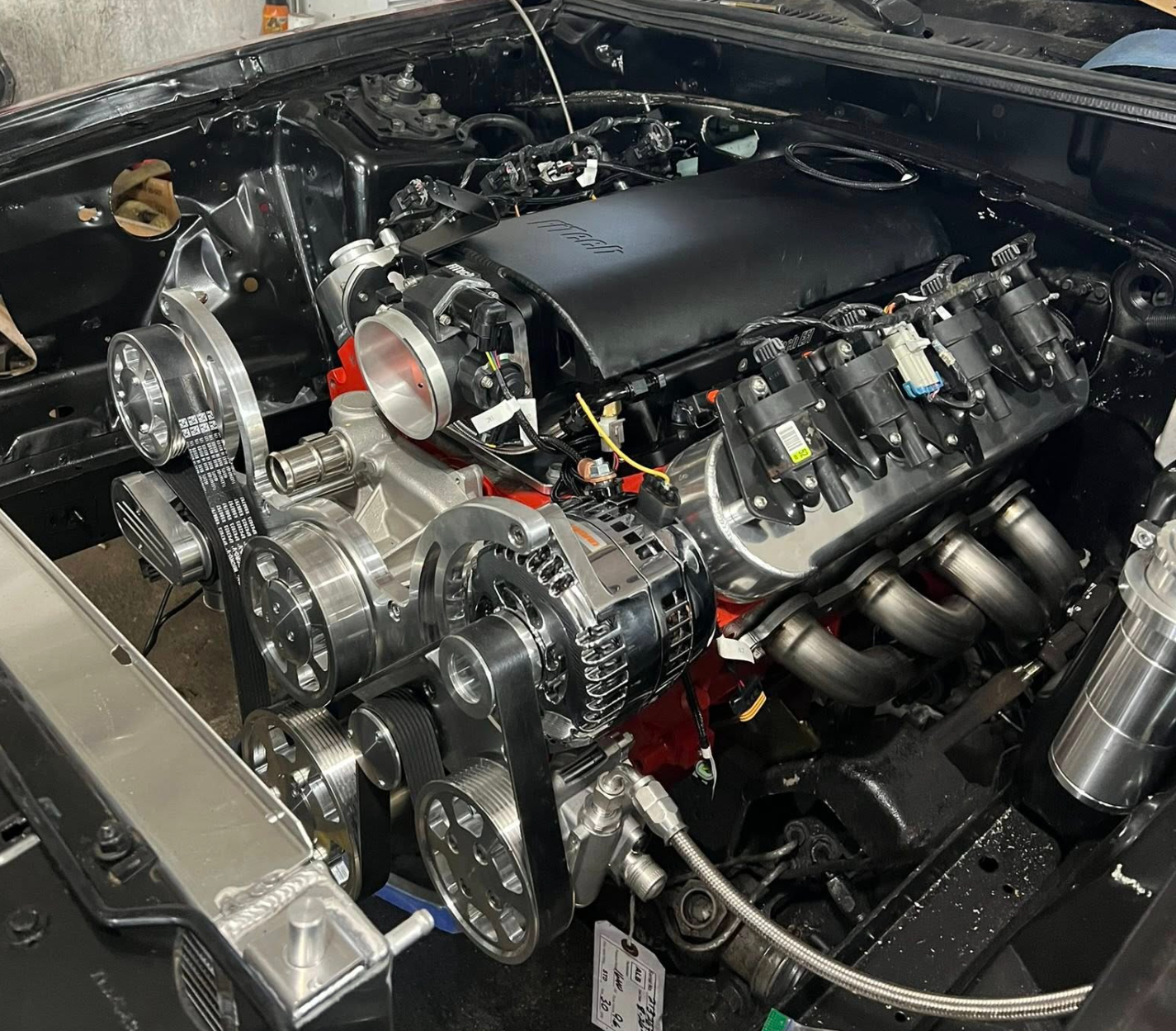

All Inclusive WRAPTOR^TM 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

Kit Includes:

• GM Type II Power Steering Pump
• 140 Amp, 1-Wire CS130 Alternator*
• Sanden Style Peanut Compressor with 8 Rib Clutch
• 90 Degree AC Compressor Fitting
• Polished Remote Mount Reservoir with Mounting Bracket
• Gates Premium 8 Rib Belt*
• 8 Rib Crank Pulley*
• 8 Rib Alternator Pulley*
• 8 Rib Power Steering Pulley
• Spring Loaded Idler Pulley*
• One Piece Billet Aluminum Bracket*
• Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)*
• Billet Compressor Clutch Cover
• Billet alternator fan*
• All Mounting Hardware*

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir on all GM applications for A-Arm Clearance

Application Notes

• Power Steering Lines from Pump to Reservoir Not Included
• Compatible with Hydroboost
• Not Compatible with 102 MM or MSD Atomic 2701 Intake
• Kit includes LS1 Water Pump; Requires LS1 Thermostat Housing & Thermostat (Not Included)
• Compatible with Meziere 100 Series Water Pump
