Chevy LSA Serpentine Kit

All Inclusive | Stealth Black | OEM LSA Blower

All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!

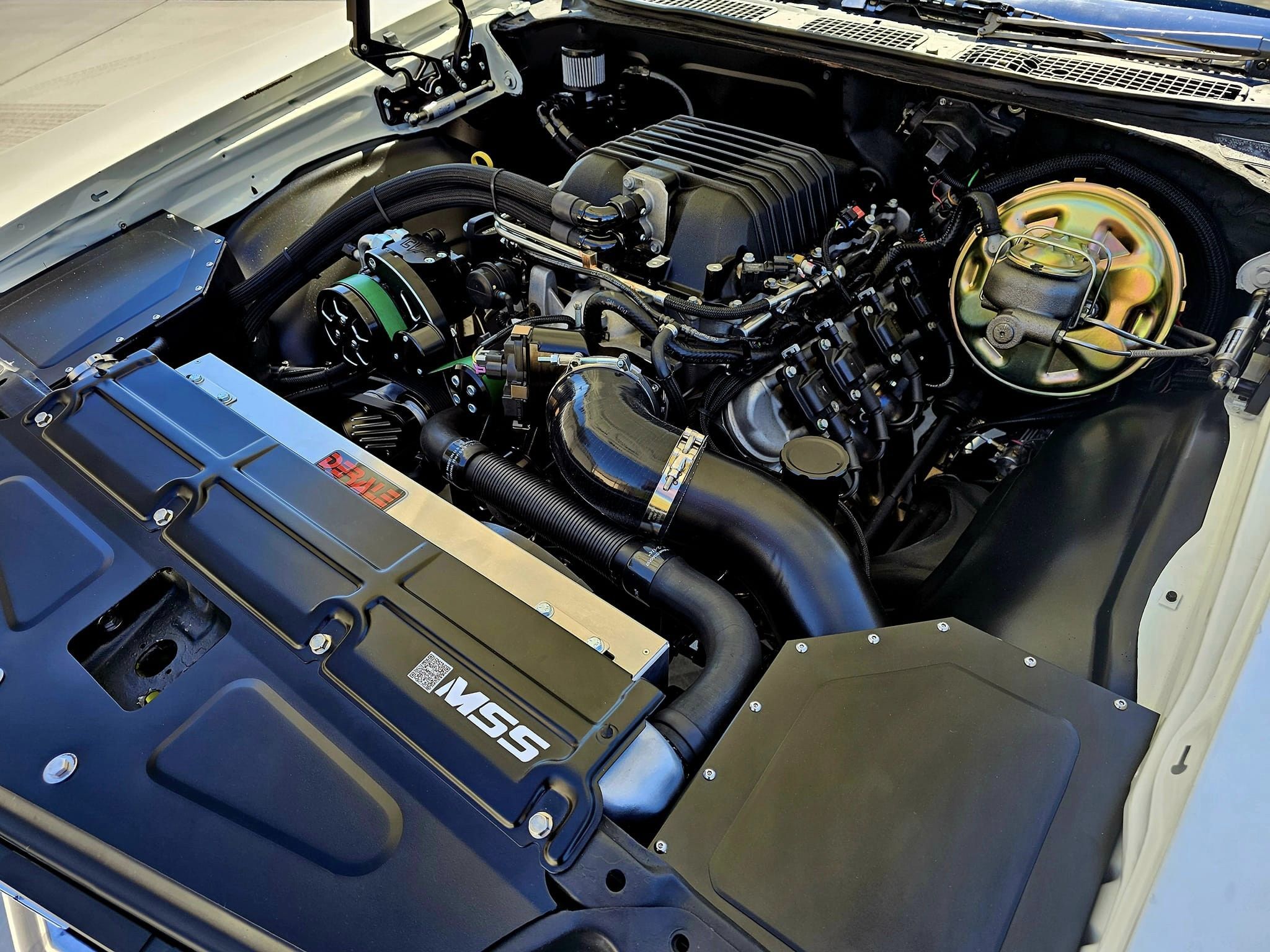

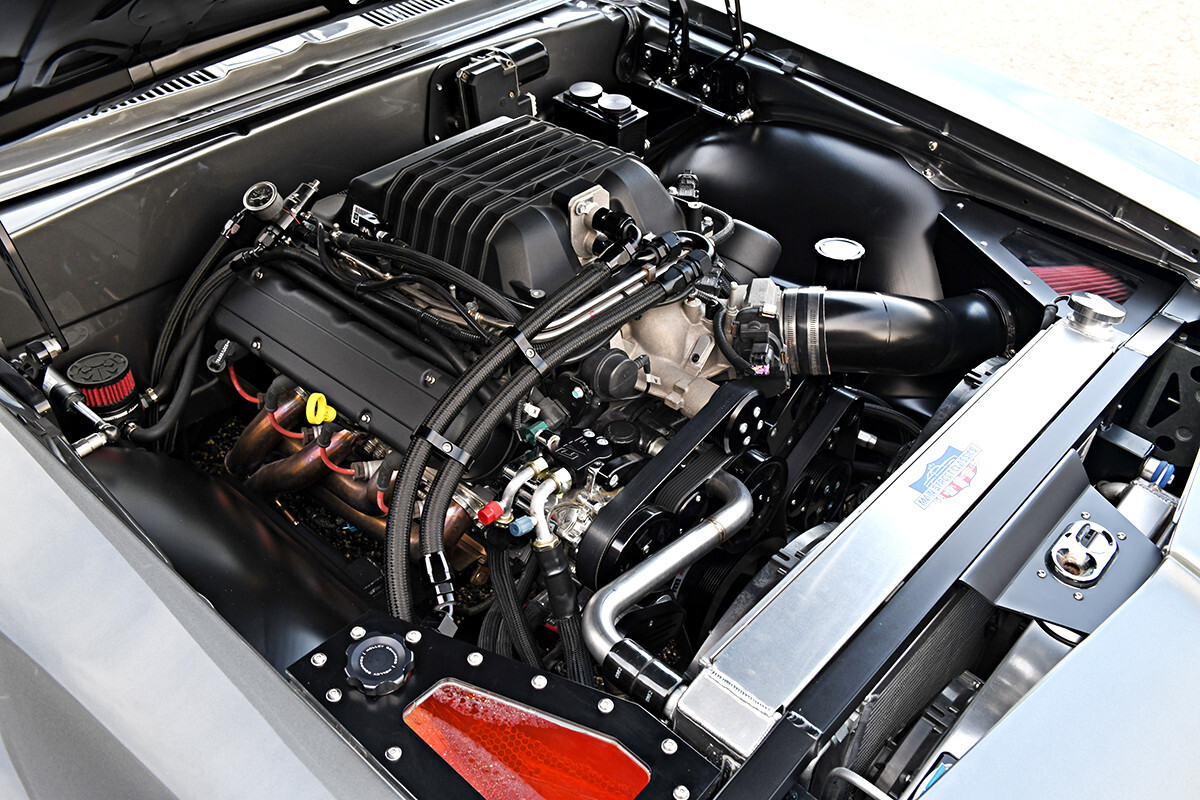

The WRAPTOR^TM 8 Track Serpentine System for kit Chevy LSA engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Kit Includes:

• High Flow Aluminum Water Pump*
• GM Type II Power Steering Pump
• 140 Amp, 1-Wire CS130 Alternator
• Sanden Style Peanut Compressor with 8 Rib Clutch
• AC Compressor Fitting
• Remote Mount Reservoir with Mounting Bracket
• Premium 8 Rib Belt*
• 8 Rib Supercharger Pulley*
• Press Fit hub for Supercharger Pulley*
• 8 Rib Water Pump Pulley*
• 8 Rib Crank Pulley*
• 8 Rib Alternator Pulley w/ Cap*
• 8 Rib Power Steering Pulley
• Spring Loaded Tensioner*
• One Piece Bracket*
• Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)*
• Billet Compressor Clutch Cover
• Billet alternator fan*
• All Mounting Hardware*

**Included with all configurations

Fits LS Based Engines with factory supercharger. Designed for the following applications:

• 2009 - 2015 Cadillac CTS-V
• 2012 - 2015 Camaro ZL1
• LSA Crate Engines or other LS based Engine equipped with factory supercharger.

Application Notes:

• Fits LS Based Engines with factory supercharger. Designed for 2009 - 2015 Cadillac CTS-V, 2012 - 2015 Camaro ZL1, LSA Crate Engines or other LS based Engine equipped with factory supercharger.
• Power Steering Lines from pump to reservoir not included.
• Compatible with Hydroboost.
• Standard 3" pulley provides 8.6 PSI boost.
• Some drive by wire applications may require Holley part# 717-15
• Call for aftermarket superchargers.
• Optional Blower (Tuner) Pulley Kit is available: Part No. LSASCKIT.
• Not compatible with 102mm intake
• Requires 90º Thermostat Housing

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.
