Chevrolet

Small Block Chevy All Inclusive Wraptor Serpentine System w/ Electric Water Pump - Black Diamond

SKU:
BD-350-WRAPTOR-EWP
Availability:
In Stock
  • Black Diamond Serpentine System for SBC 283-350-400 - AC, Power Steering & Alternator with Electric Water Pump
  • Black Diamond Serpentine System for SBC 283-350-400 - AC, Power Steering & Alternator with Electric Water Pump
  • Small Block Chevy All Inclusive Wraptor Serpentine System w/ Electric Water Pump - Black Diamond
  • Small Block Chevy All Inclusive Wraptor Serpentine System w/ Electric Water Pump - Black Diamond
  • Small Block Chevy All Inclusive Wraptor Serpentine System w/ Electric Water Pump - Black Diamond
  • Small Block Chevy All Inclusive Wraptor Serpentine System w/ Electric Water Pump - Black Diamond
MSRP: $2,195.00
$2,075.00
— You save $120.00

Description

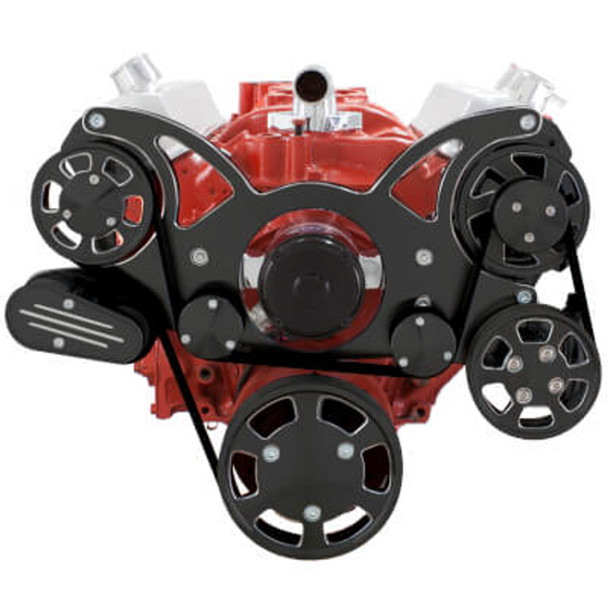

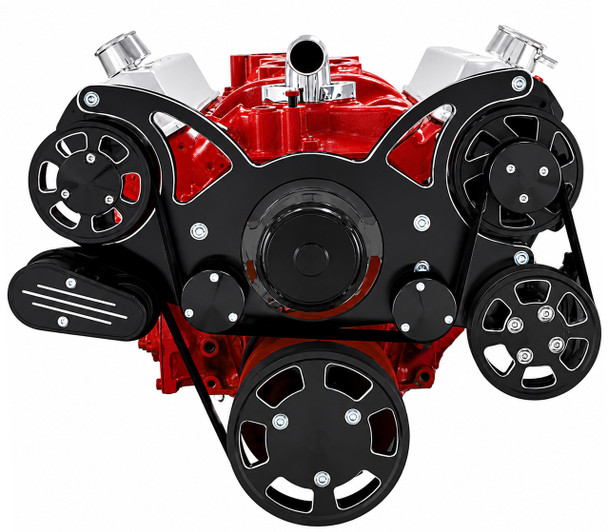

Black Diamond Small Block Chevy 283-350-400 Engine Serpentine Conversion Kit

All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy Small Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:
  • 140 Amp Black Powder Coated 1-Wire CS130 Alternator*
  • 35 GMP Electric Water Pump*
  • Black Powder Coated AC Compressor
  • AC Compressor Clutch Cover
  • Black Powder Coated Aluminum GM Type II Power Steering Pump
  • Remote Mount Reservoir with Bracket
  • Gates Premium 8 Rib Belt*
  • Crank Pulley*
  • Crank Pulley Spacer*
  • Alternator Pulley & Cover*
  • Power Steering Pulley
  • One Piece Billet Aluminum Bracket*
  • Universal Alternator Fan*
  • All Mounting Hardware*

**Included with all configurations

Application Notes:
  • Works with either Mechanical or Electric fuel Pump
  • Works with either Standard or Camel Hump / Fuelie Heads
  • Power Steering Lines from pump to reservoir not included
  • Compatible with Hydro-boost
If ordering without accessories, please see the requirements below:
  • Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
  • Power Steering Pump - GM Type II Pump
  • Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch



CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S

warning8p.pngWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

View AllClose

Additional Information

Product Type:
Wraptor - All Inclusive
Power Steering Included:
Yes
AC Included:
Yes
Mounting Position:
Mid-Mount
Finish:
Black Diamond
Belt Type:
Serpentine 8 Rib
Water Pump Type:
Electric
Make:
Chevy
Engine:
350 Small Block
