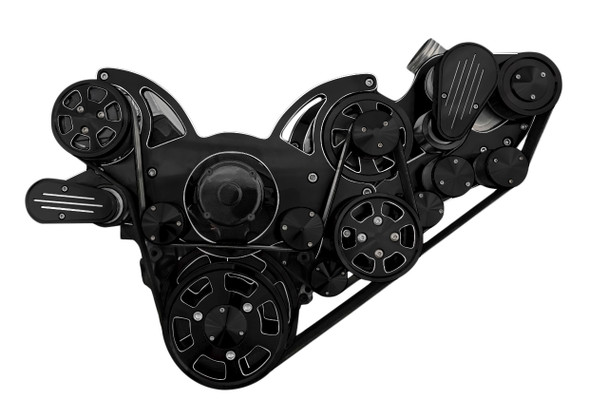

Small Block Chevy All Inclusive Wraptor Serpentine System w/ EWP Compatible w/ Procharger® - Black Diamond

Black Chevy Small Black Block Serpentine Kit for ProCharger

283 - 302 - 305 - 327 - 350 - 400

All Inclusive WRAPTOR^TM 8 Track Serpentine System for kit Chevy Small Block engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

ProCharger Kit Includes:

• Billet Aluminum Bracket
• 10 Rib Supercharger Pulley
• Gates Spring Loaded Tensioner
• Idler Pulley(s)
• Crank Pulley
• 10 Rib Belt
• Mounting Hardware

Note: Head unit NOT included; Works with P-1SC or D-1SC

Wraptor System Includes:

• 35 GPM Electric Water Pump*
• 140 Amp, 1-Wire CS130 Alternator*
• Sanden Style Peanut Compressor with 8 Rib Clutch
• Compressor Clutch Cover
• AC Compressor Fitting
• GM Type II Power Steering Pump
• Remote Reservoir
• Gates Premium 8 Rib Belt*
• 8 Rib Alternator Pulley*
• 8 Rib Power Steering Pulley
• Gates Spring Loaded Tensioner*
• Billet Aluminum Bracket*
• Alternator Fan*

**Included with all configurations

Compatible upgrades

• KRC Power Steering Pump
• 300 Amp Alternator

Application Notes

• Power Steering Lines from pump to reservoir not included
•  Requires 6.5" Balancer; will not work with 8"
• Procharger Unit needs to be clocked to the 12 O'clock Position

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent # US D846,000 S
