Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes

SKU:
350-REAPER
Availability:
Black, Clear, and Black Diamond Ship October 2024
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
  • Small Block Chevy All Inclusive Reaper Serpentine System - Polished Finishes
$2,495.00

Description

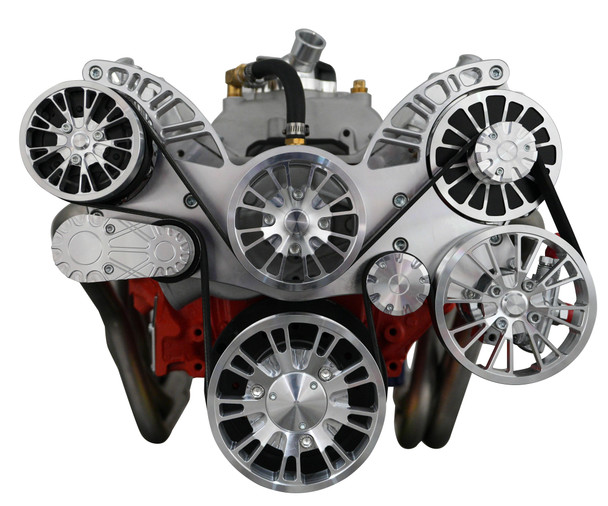

Small Block Chevy Reaper Serpentine System

Introducing the CVF Reaper Serpentine System, our premier billet aluminum 8-track kit. The Reaper raises the bar for the serpentine market and there is truly nothing like it. It features an innovative bracket design, stainless steel hardware, and billet aluminum spacers. Proudly CNC machined in the USA, the Reaper ensures top-notch performance and eye-catching style, all supported by a lifetime warranty. reaper-logo-jpeg.jpg

Kit Includes:

  • High Flow Aluminum Short Water Pump*
  • GM Type II Power Steering Pump
  • 140 Amp, 1-Wire CS130 Alternator; upgradable to 300 amps
  • Sanden Style Peanut Compressor with 8 Rib Clutch
  • Polished AC Compressor Fitting
  • Polished Remote Mount Reservoir with Mounting Bracket
  • Gates Premium 8 Rib Belt*
  • 8 Rib Water Pump Pulley*
  • 8 Rib Crank Pulley*
  • 8 Rib Alternator Pulley*
  • 8 Rib Power Steering Pulley
  • Spring Loaded Belt Tensioner with patent pending adjustable bracket
  • One Piece Billet Aluminum Bracket*
  • Black Anodized Hub Adapter
  • Billet Compressor Clutch Cover
  • Billet alternator fan*
  • Stainless Steel Mounting Hardware
  • Billet Spacers (Anodized Clear or Black)

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance



Application Notes
  • Power Steering Lines from pump to reservoir not included
  • Compatible with Hydro-boost


CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.

Patent Pending.

View AllClose

Additional Information

Product Type:
Reaper - All Inclusive
Power Steering Included:
Yes
AC Included:
Yes
Mounting Position:
Mid-Mount
Compressor Type:
Sanden Peanut 7B10
Finish:
Polished or C3 Clear Coat
Belt Type:
Serpentine 8 Rib
Water Pump Type:
Mechanical
Water Pump:
Short
Water Pump Rotation:
Reverse
Make:
Chevy
Engine:
350 Small Block
