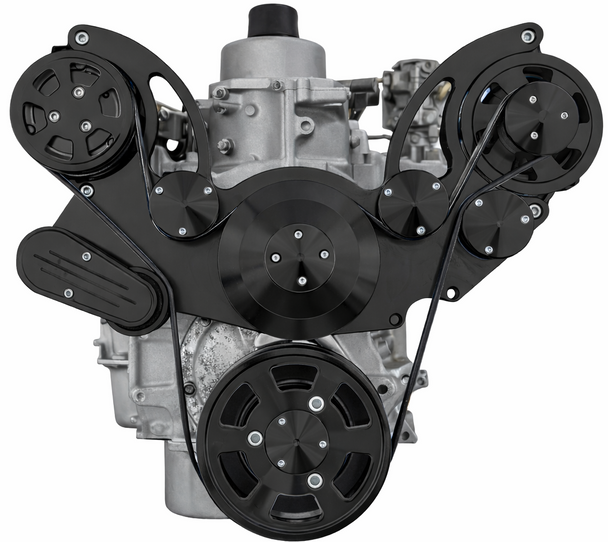

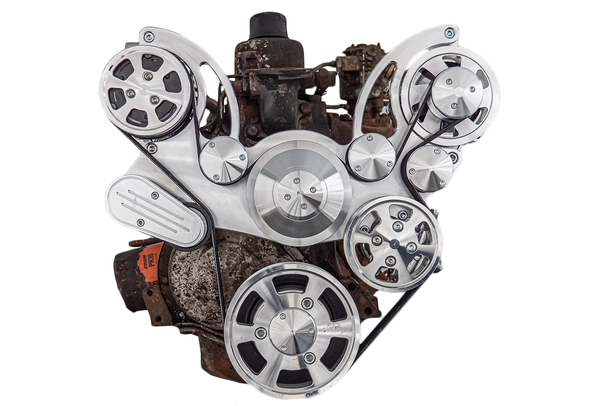

Chevy Straight Six Wraptor Serpentine System

Turbo Thrift ; Inline Six

1962 - 1988

194 - 230 - 250 - 292

You asked and we listened! Introducing the first of its kind, all inclusive Wraptor™ Serpentine System for the Chevy Straight Six Engine! CVF Wraptor systems utilize an 8 rib serpentine pulleys for increased grip, reduced stretching, and prevents slippage when compared to traditional 6 rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:

• 140 Amp Black CS130 1-Wire Alternator (300 Amp upgrade available)**
• Black Plated Peanut Style AC Compressor
• AC Clutch Cover
• Chrome Plated GM Type II Power Steering Pump
• Power Steering Remote Reservoir
• Gates Premium 8 Rib Belt**
• Water Pump Pulley and Cap**
• Crank Pulley**
• Hub Adapter**
• Alternator Pulley and Cap**
• Alternator Fan**
• Power Steering Pulley
• One Piece Mounting Bracket **
• 90° AC Fitting
• All Mounting Hardware Included **

**Included with all configurations

Requirements for 194-250 Engines:

• Water Pump with Hub Height of 3-15/16" with Internal Bypass (FlowKooler #1686 or FlowKooler #1777cw)
• Single Groove OEM Style Crank Pulley

Requirements for 292 Engines:

• Must use SBC Neutral Balanced Harmonic Damper (Fluidampr 720101)
• Water Pump with Hub Height of 4-1/4" with External Bypass (Murray CP1137)

Application Notes:

• Compatible with all Chevy Straight 6 Engines from 1962+
• Compatible with Hydroboost (upgraded pump available)
• Power Steering and AC Lines NOT included
• Does not include a new water pump
