Will This Fit My Application?
General Information
Why dimensional drawings matter more than model years, and how to check clearances before you order.
Why Fitment Is Rarely Straightforward
Let's remember that a lot of the vehicles that are getting treatment were born while The Beatles were still together.
What that means is that drawings and renderings either don't exist for them or aren't accessible because they are proprietary to the company that commissioned them to be done.
It also becomes quite common that what is going into the vehicle isn't anything that it had originally. A SBC turns into a BBC or an LS swap. Or a 6-cylinder gets a 302 transplant.
These are fairly common things but there are also many variations throughout the model of the vehicle that may have changed where a motor or radiator was placed like in a Tri 5 that came equipped with a V6 vs V8. Or, a crossmember may be in a different place depending on how the car came originally equipped.
So What Do I Do?
CVF provides dimensions of each one of the systems. These can all be found online in the CVF Digital Catalog.

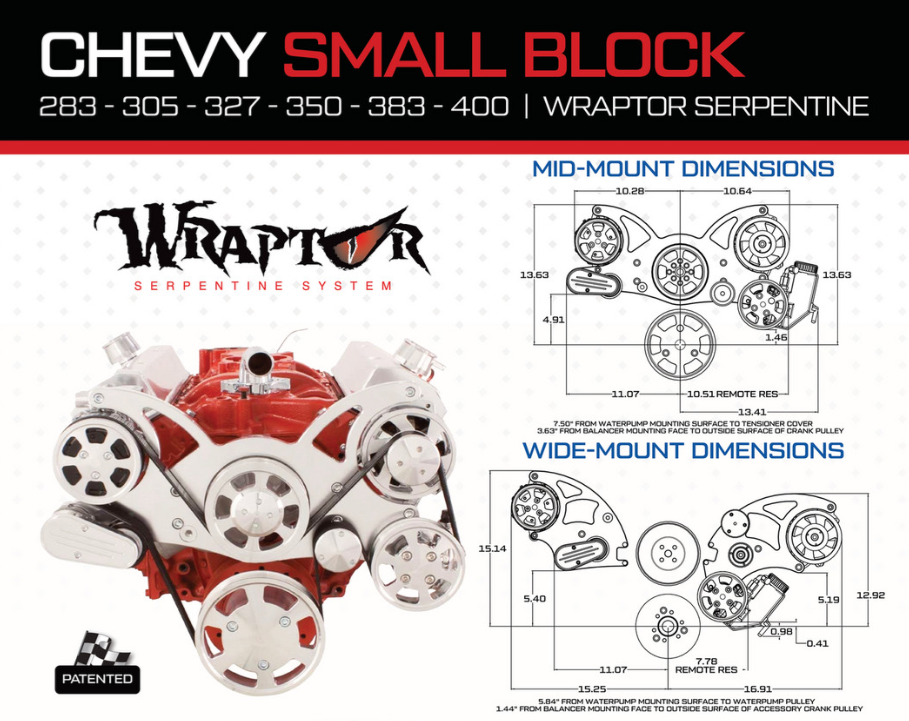

The beginning of each section has a dimensional drawing similar to this one for Chevy Small Block. You do not have to go to the catalogue for it either. The same dimensional drawing is in the photo gallery on the product page for that specific system on our website, alongside the product photos.
With the engine in place and this guide in hand you can begin to take measurements from various points. Or what a lot of customers will do is take some cardboard and make a rough template from the dimensions and start checking for clearances.
Watch it on video
AC compressor compatibility is one of the most common fitment questions we get. This covers which compressors work with what.
AC Compressor Compatibility Explained — CVF Racing on YouTube
Still need help? Our tech support team can get you pointed in the right direction.
