Dodge Hemi 5.7L, 6.1L & 6.4L Magnuson Magnum TVS 2650 Supercharged Reaper Dual Belt Serpentine System

10 Rib Dedicated Supercharger Belt | 8 Rib Front Drive | Polished Finishes | Magnuson Magnum TVS2650

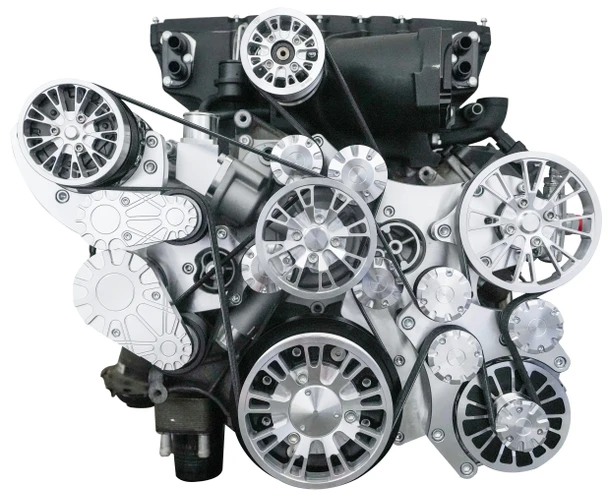

The CVF Racing Reaper Serpentine System is a premium dual belt drive solution engineered specifically for Gen III Dodge Hemi 5.7L, 6.1L & 6.4L engines running the Magnuson Magnum TVS2650 supercharger.

This high-performance serpentine system features a dedicated 10 rib supercharger belt and separate 8 rib accessory drive, delivering superior belt grip, improved boost stability, and maximum reliability for extreme horsepower builds approaching 1500 HP.

Precision CNC machined in the USA from billet aluminum, the Reaper system combines race-level performance with show-quality polished finishes — backed by a lifetime warranty.

Key Features:

• Dedicated 10 Rib Supercharger Drive System
• 8 Rib Accessory Drive
• Designed for Magnuson Magnum TVS2650
• Engineered for High Horsepower (up to ~1500 HP Builds)
• Billet Aluminum Brackets and Pulleys
• Stainless Steel Hardware
• Clear Anodized Billet Spacers
• CNC Machined in the USA
• Lifetime Warranty

All Inclusive Kit Includes:

• 140 AMP Chrome 1-Wire CS130 Alternator*
• Chrome Plated Peanut Style Compressor
• AC Compressor Billet Clutch Cover
• Premium 8 Rib Belt*
• Premium 10 Rib Belt*
• Billet Water Pump Pulley w/ Decorative Cap*
• Billet Crank Pulley*
• Billet Alternator Pulley w/ Decorative Cap*
• AC Bracket*
• Power Steering & Alternator Bracket*
• Universal Billet Alternator Fan*
• Spring Loaded Tensioner w/ Decorative Cap*
• Idlers w/ Decorative Caps*
• GM Type 2 Power Steering Pump w/ Billet Remote Reservoir
• As Cast Aluminum High Flow Water Pump*
• Supercharger Hub*
• Supercharger Pulley*
• Stainless Steel Hardware*
• Clear Anodized Spacers
• Billet Water Neck

**Included with all configurations

Notes & Requirements:

• ATI balancers are available from ATI and compatible with any Gen III Hemi with VCT (2009+). ATI Part Numbers: 918459 or 918486.
• All engines REQUIRE a car timing cover. Dodge Ram and Durango both came w/ a different style timing cover.
• Fits Magnuson Gen 3 Hemi Magnum 2650: 05-26-64-005-BL

CVF Racing offers the most customizable serpentine kits available on the market today. If you need help with ordering or have any questions, feel free to reach out to us at 651-356-8593.
